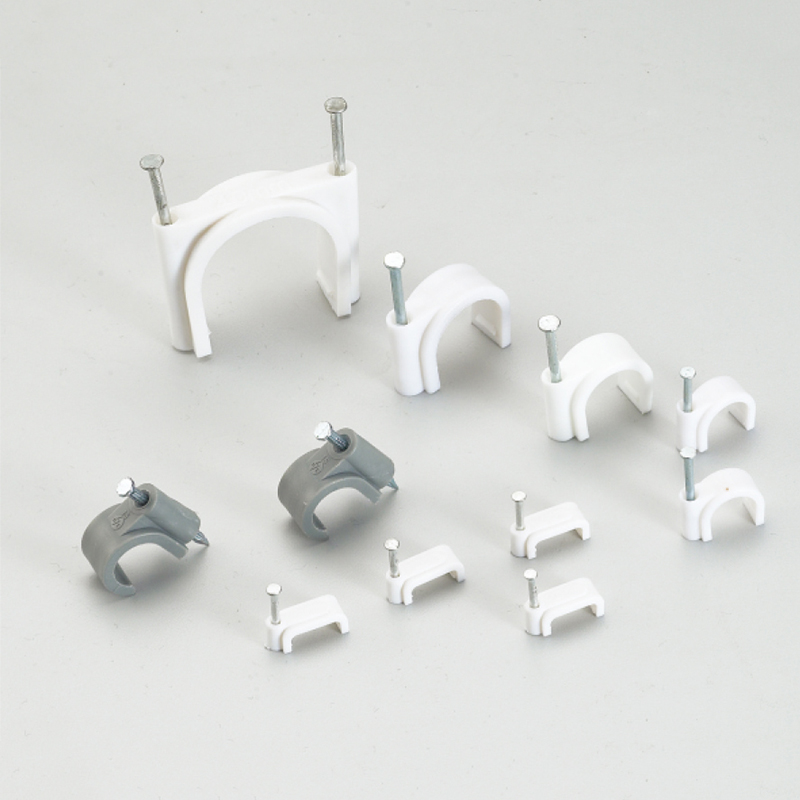

本系列線卡，均采用PE(白色、灰色)料注射成型，彈性大，耐沖擊，絕不破裂。
本系列線卡，均為插釘式，鋼釘直接附在線卡，可大量節(jié)省工時，降低施工成本。
PE(white,grey), elasticity and shock resisting.
Inserting type, nail attached in clips, Save time and cost.
|

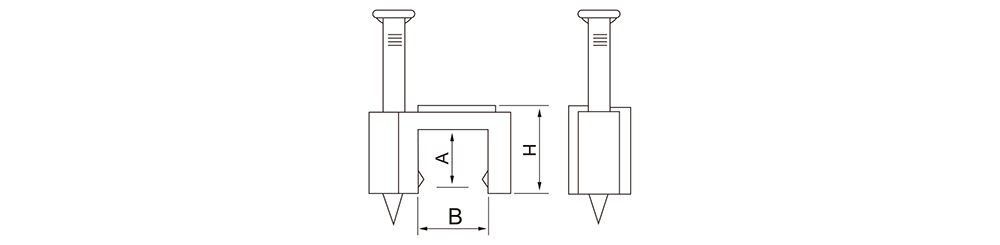

型號 ITEM.NO. |
高(H) (mm) |
A | B |
鋼釘 NAIL |
顏色 Color |
|---|---|---|---|---|---|
| WFF-2.5MM | 3.5 | 2.0 | 2.5 | 1.4×14 |
WHITE GREY BLACK BROWN DARK GREY |
| WFF-4MM | 6.0 | 3.8 | 4 | 1.7×14 | |
| WFF-5MM | 6.0 | 3.8 | 5 | 1.7×14 | |
| WFF-6MM | 6.5 | 4.1 | 6 | 1.7×16 | |
| WFF-7MM | 7.0 | 4.7 | 7 | 1.9×16 | |
| WFF-8MM | 7.5 | 5.0 | 8 | 2.1×19 | |
| WFF-9MM | 8.2 | 5.4 | 9 | 2.1×20 | |
| WFF-10MM | 8.6 | 5.7 | 10 | 2.3×21 | |
| WFF-12MM | 9.0 | 6.1 | 12 | 2.3×23 | |
| WFF-14MM | 11.0 | 8.0 | 14 | 2.3×25 | |
| WFF-18MM | 12.5 | 10 | 18 | 2.6×27 | |
| WFF-19MM | 13.0 | 10.5 | 19 | 2.6×27 |
