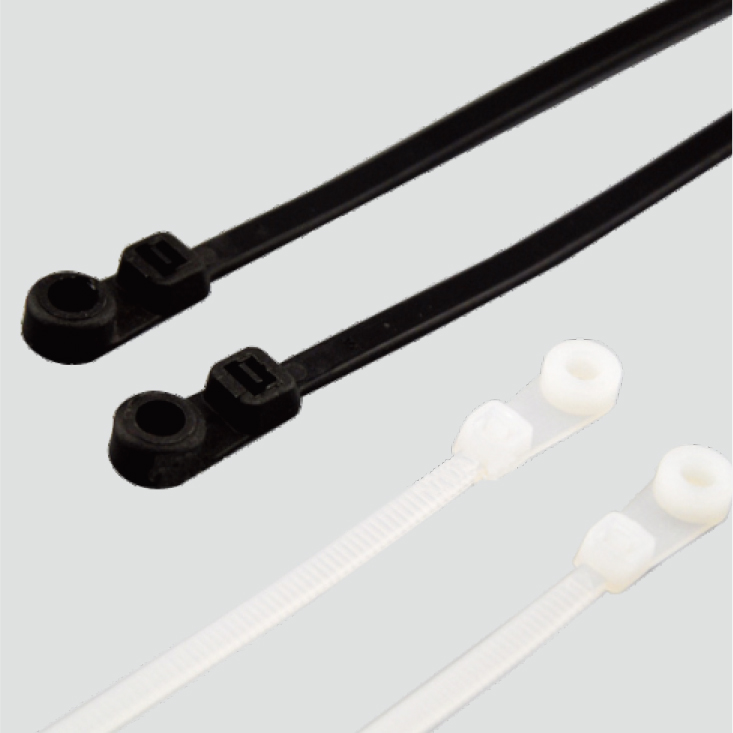

材質：UL認可尼龍66料制成。
特點：扎帶捆孔電線后，將整束電線用螺釘固定于機板上。
Material: Nylon 66 certificated by UL.
Usage: After bundling wires, fix them on plate with screw.
|
型號 ITEM.NO. |
L(長) |
W(寬) (mm) |
捆扎范圍 Bundle diameter E(mm) |
拉力 Min.loop tensile strength |
||
|---|---|---|---|---|---|---|
| INCH | MM | LBS | KGS | |||
| WF-100MT | 4" | 100 | 2.5 | 22 | 18 | 8.0 |
| WF-150MT | 6" | 150 | 3.6 | 35 | 40 | 18 |
| WF-200MT | 8" | 200 | 4.8 | 50 | 50 | 22 |
