材質(zhì)：采用UL認(rèn)可的尼龍66。
防火等級：94V-2。
用途：先將固定座用螺絲固定在基板上，再用扎線帶捆綁物品即可。
Material: UL approved Nylon 66
Fire rating: 94V-2
Purposes: First holder fixing screws on the substrate, and then articles can be bundled with cable ties.
|
型號 ITEM.NO. |
單位 Unit |

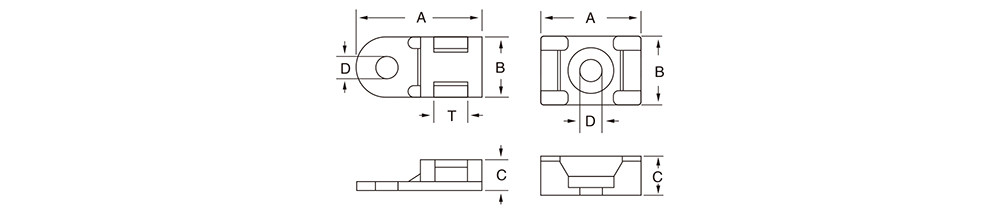

A(mm) | B(mm) | C(mm) | D(mm) |
包裝/只 Packing |
|---|---|---|---|---|---|---|
| WF-5×7 | 只 | 19.0 | 9.3 | 4.9 | 4.3 | 1000 |
| WF-7×13 | 只 | 19.0 | 7.0 | 5.7 | 3.2 | 1000 |
| WF-10×15 | 只 | 15.0 | 10.0 | 7.0 | 3.3 | 1000 |
| WF-15×15M4 | 只 | 15.3 | 10.3 | 7.0 | 4.0 | 500 |
| WF-15×22 | 只 | 21.9 | 15.3 | 9.8 | 6.0 | 500 |
| WF-15×22M5 | 只 | 23.3 | 16.0 | 9.8 | 5.0 | 500 |
| WF-15×27 | 只 | 28.8 | 15.3 | 11.8 | 5.1 | 500 |
| WF-13×24 | 只 | 24.0 | 13.2 | 5.7 | 4.5 | 500 |
