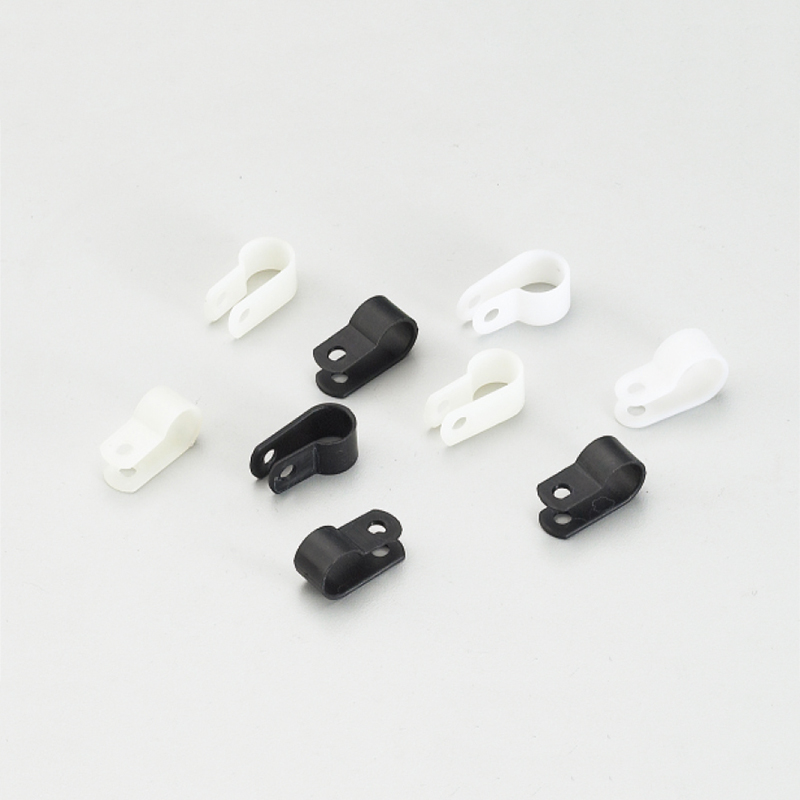

Material: Nylon 66 94v-2 agreed by UL.
Usage: Put cable in fix by screw.

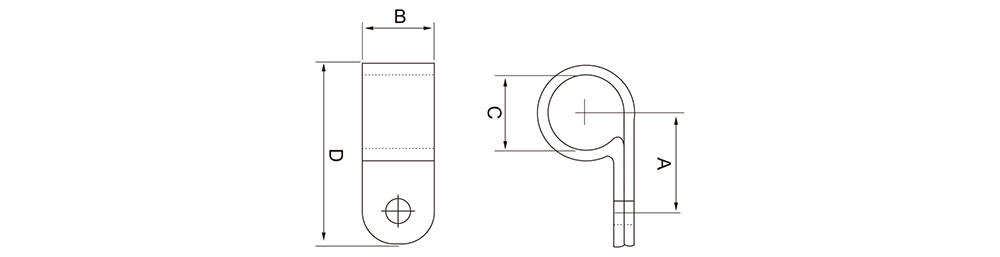

| ITEM.NO. | A(mm) | B(mm) | C(mm) | D(mm) |
|---|---|---|---|---|
| WFS-1/8R | 9.5 | 9.3 | 3.2~4.5 | 16.8 |
| WFS-3/16R | 9.6 | 9.5 | 5.0~5.5 | 18.5 |
| WFS-1/4R | 12.0 | 9.5 | 5.0~5.5 | 17.0 |
| WFS-5/16R | 12.0 | 9.5 | 6.2~7.5 | 21.0 |
| WFS-3/8R | 12.5 | 9.5 | 8.0~9.0 | 23.0 |
| WFS-1/2R | 15.2 | 9.5 | 9.5~10.5 | 24.0 |
| WFS-5/8R | 18.2 | 9.5 | 11.0~12.5 | 25.5 |
| WFS-3/4R | 18.2 | 9.3 | 13.8~14.8 | 30.0 |
| WFS-1R | 22.0 | 11.8 | 16.0~19.2 | 35.0 |
| WFS-17/16R | 24.0 | 13.0 | 22.0~25.0 | 44.0 |
| WFS-5/4R | 26.2 | 12.5 | 27.0~30.0 | 46.0 |
| WFS-3/2R | 30.0 | 12.5 | 45.0~50.0 | 72.0 |
