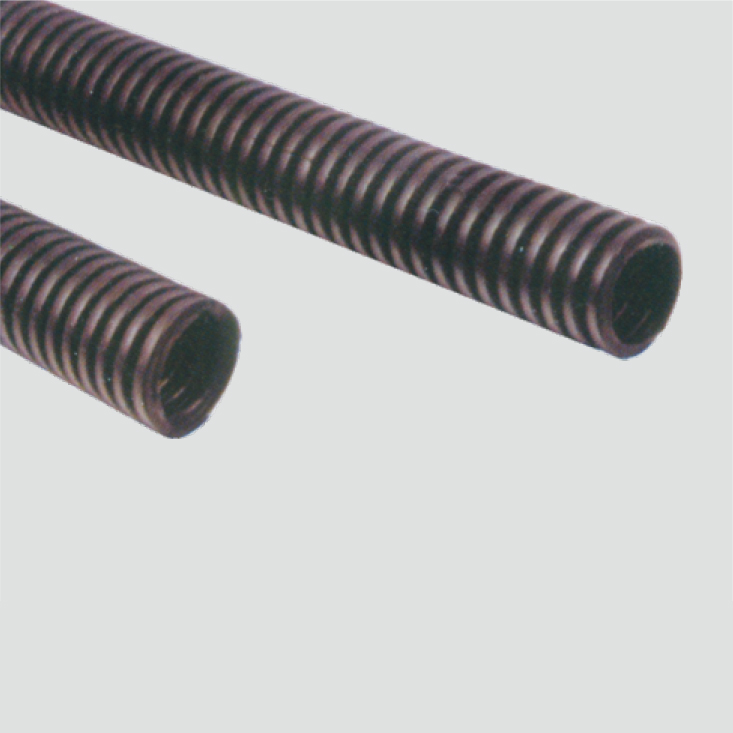

型號(hào) ITEM.NO |
軟管規(guī)格(AD) Specifications for flexible pipe |
內(nèi)徑×外徑(mm) Inner diameter× outer diameter |
彎曲半徑 Curved radius |
|---|---|---|---|
| WFWS-7.0 | AD7.0 | 4.5×7.0 | 16 |
| WFWS-10.0 | AD10.0 | 6.5×10.0 | 16 |
| WFWS-11.6 | AD11.6 | 8.0×11.6 | 16 |
| WFWS-13.0 | AD13.0 | 10.0×13.0 | 20 |
| WFWS-15.8 | AD15.8 | 12.0×15.8 | 30 |
| WFWS-18.5 | AD18.5 | 14.3×18.5 | 40 |
| WFWS-21.2 | AD21.2 | 17.0×21.2 | 45 |
| WFWS-25.0 | AD25.0 | 20.0×25.0 | 45 |
| WFWS-28.5 | AD28.5 | 23.0×28.5 | 50 |
| WFWS-34.5 | AD34.5 | 29.0×34.5 | 60 |
| WFWS-42.5 | AD42.5 | 36.0×42.5 | 70 |
| WFWS-54.5 | AD54.5 | 48.0×54.5 | 90 |
