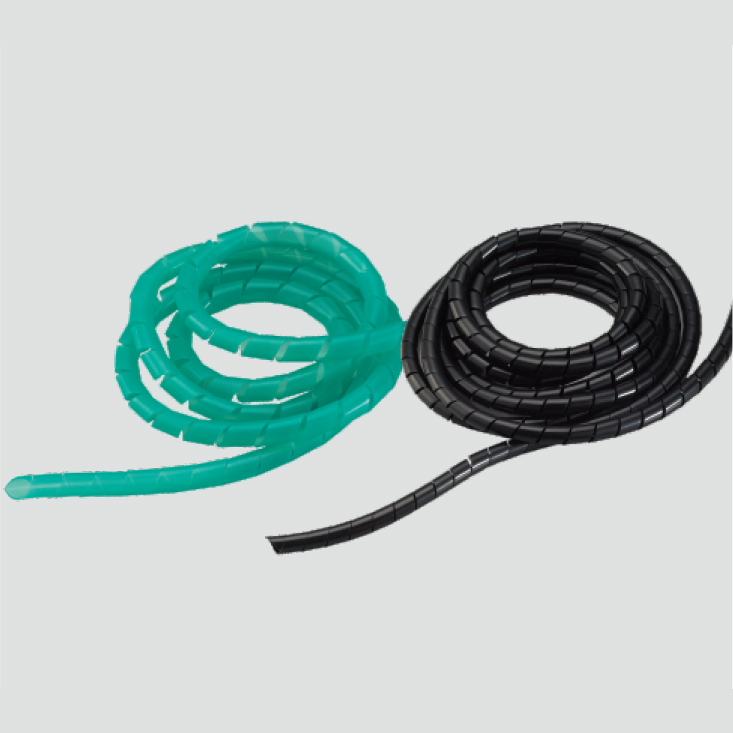

材質：采用PE料制成。
使用方法：先用保護帶固定起點一端，然后依順時針?lè)较颦h(huán)繞束緊，即可將電絲束為一體。
用途：作為保護電線不受磨損及絕緣用，并可改進電線彎曲的美觀。
Material: Made by PE.
Operation instruct: Fasten the beginning pary by safe belt, then, time wise roll and bind up.
Operlication: Protect electric wire wear and tear. For usage of insulation
|
型號 ITEM.NO |
外徑 A(mm) |
內徑 B(mm) |
螺距 P(mm) |
捆扎直徑 Bundle Diameter(mm) |
包裝 Packing |
|---|---|---|---|---|---|
| WFSWB-03 | 4 | 2.8 | 5.8 | 3-20 | 10m |
| WFSWB-04 | 5 | 4 | 7.0 | 4-45 | |
| WFSWB-05 | 6 | 4.8 | 7.0 | 4-45 | |
| WFSWB-06 | 6 | 4 | 7.0 | 4-45 | |
| WFSWB-08 | 8 | 6 | 10.8 | 6-60 | |
| WFSWB-10 | 10 | 7.5 | 11.4 | 7.5-60 | |
| WFSWB-12 | 12 | 9 | 13.9 | 9-65 | |
| WFSWB-14 | 14 | 11.5 | 14.0 | 10-70 | |
| WFSWB-16 | 16 | 13.5 | 15.0 | 12-75 | |
| WFSWB-18 | 18 | 15 | 18.2 | 14-85 | |
| WFSWB-20 | 20 | 17.5 | 18.5 | 15-100 | |
| WFSWB-22 | 22 | 19.5 | 20.0 | 20-130 | |
| WFSWB-25 | 25 | 22.5 | 20.0 | 22-135 | |
| WFSWB-30 | 30 | 27 | 20.0 | 27-150 |
