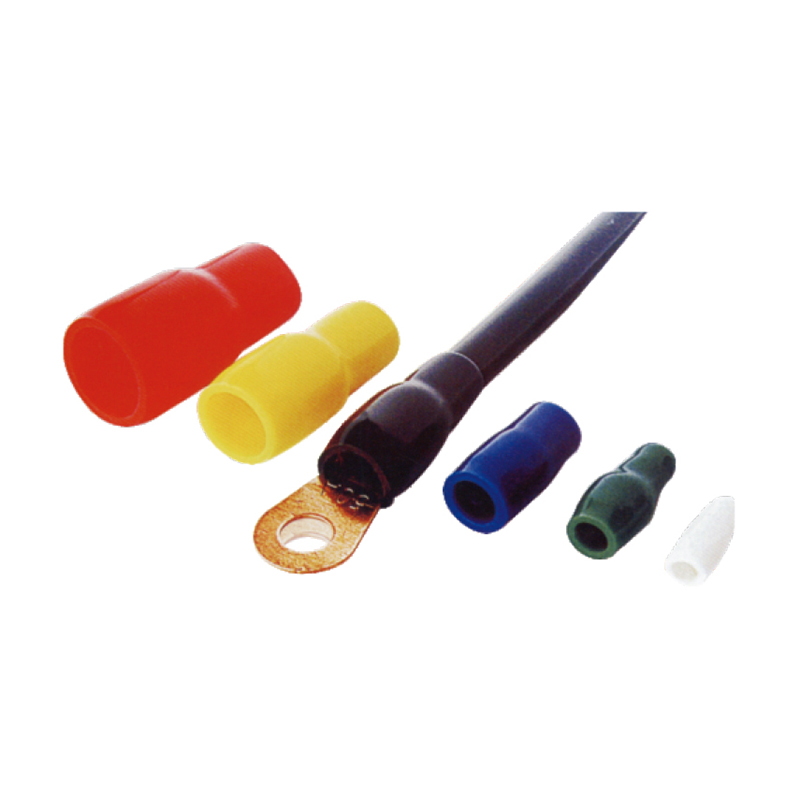

型號 ITEM.NO |
尺寸 Dimension | ||||
|---|---|---|---|---|---|
| D1 | D2 | D3 | L | T | |
| mm | mm | mm | mm | mm | |
| FWV 1.25 | 2.8 | 3.3 | 3.1 | 13±2.0 | 0.6 |
| FWV-2 | 3.3 | 4.5 | 3.7 | 14 | 0.7 |
| FWV-3.5 | 4.2 | 5.7 | 4.1 | 17 | 0.8 |
| FWV-5.5 | 4.8 | 5.7 | 5.2 | 17 | 0.8 |
| FWV-8 | 6.2 | 7.2 | 6.2 | 19 | 1.0 |
| FWV-14 | 7.5 | 10 | 8 | 25±2.4 | 1.4 |
| FWV-22 | 10.5 | 12 | 9.5 | 30 | 1.2 |
| FWV-38 | 12.5 | 14 | 11.8 | 34 | 1.5 |
| FWV-60 | 15 | 16.8 | 13.5 | 39 | 1.5 |
| FWV-80 | 17 | 19 | 16 | 47±3.0 | 1.6 |
| FWV-100 | 19 | 22 | 18 | 54 | 1.7 |
| FWV-125 | 21 | 24 | 20 | 57 | 1.8 |
| FWV-150 | 23 | 24.5 | 22 | 65 | 2.0 |
| FWV-200 | 27 | 32 | 24 | 65 | 2.0 |
| FWV-250 | 29 | 38 | 26.5 | 77±4.0 | 2.5 |
| FWV-325 | 29 | 38 | 29 | 77 | 2.5 |
| FWV-400 | 39 | 44 | 37 | 86 | 2.5 |
| FWV-500 | 40.5 | 45 | 39.5 | 86 | 2.5 |
| FWV-630 | 47 | 52 | 45 | 92 | 2.5 |
