Material: Siver-coated copper plece covred by UL. Appoved Nylon or PE.
How to use: Put in the bare wire end into the cap and press wit clipper.
Application: Wire joining.

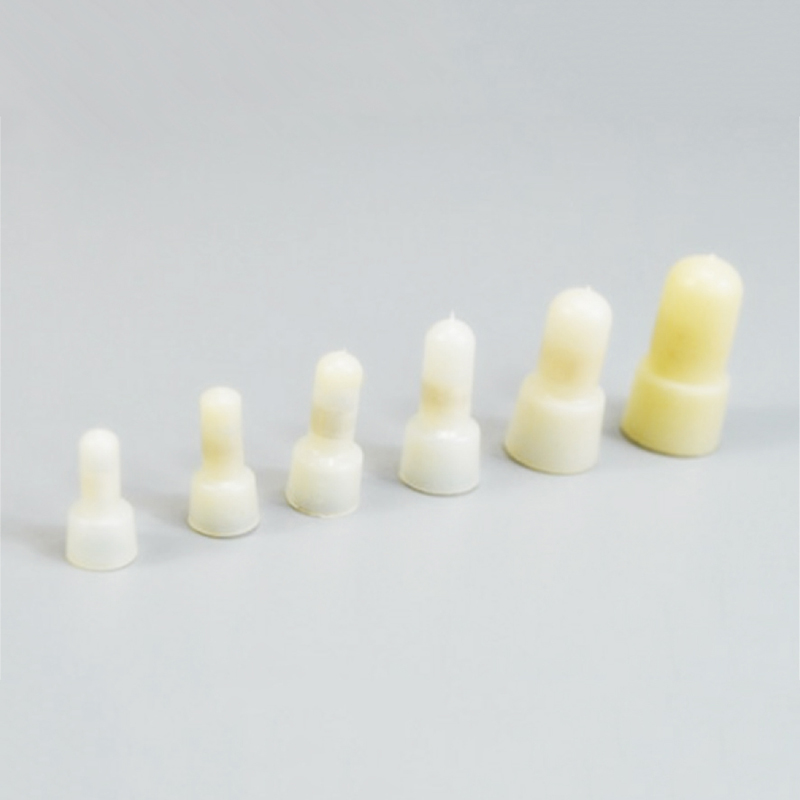

| ITEM.NO |
Nylon φ3 |
Nylon φ4 |
Nylon φ5 |
Nylon φ6 |
Nylon φ8 |
Nylon φ10 |
|
|---|---|---|---|---|---|---|---|
|
標(biāo) 準(zhǔn) 尺 寸 |
φ1 | 3 | 3.15 | 4.2 | 5.2 | 6.5 | 8.3 |
| φ2 | 6.5 | 7.6 | 5.58 | 10 | 11.5 | 14.3 | |
| φ3 | 7.5 | 8.6 | 9.2 | 10.7 | 12.5 | 15.3 | |
| L1 | 15.8 | 17.7 | 20.6 | 22 | 22.5 | 6 | |
| L2 | 3.2 | 3.2 | 4.5 | 4.5 | 5.5 | 29.5 | |
