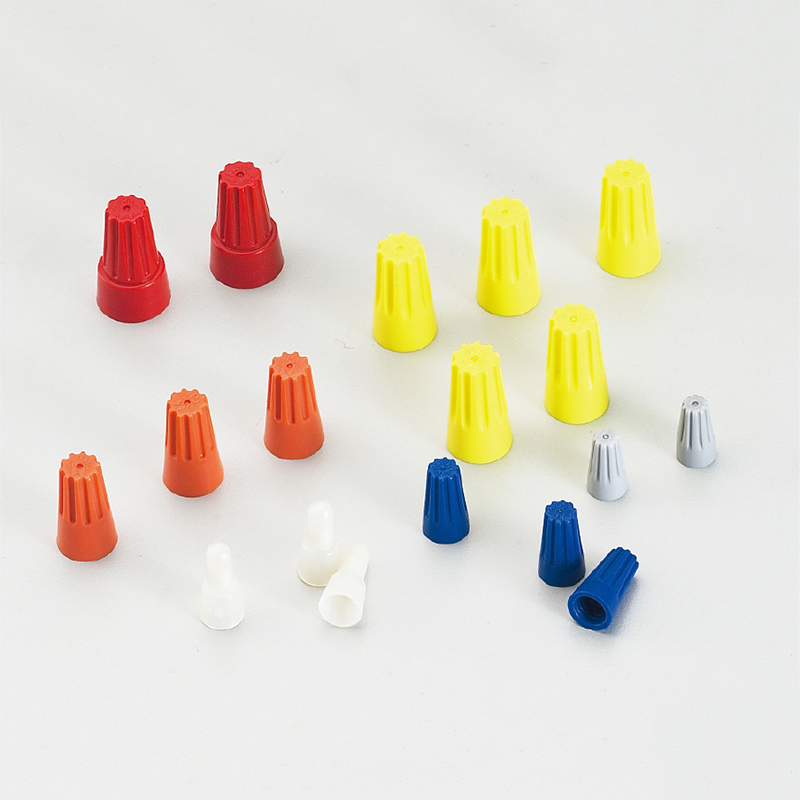

Material: PVC, threaded, Heat-resjstant and insulating.
How to use: Put the joint of two wires into the cap and screa if in until it is tight. wall to secure the cable.
Application: Wire joining.
| ITEM.NO |
A （mm） |
B （mm） |
C （mm） |
Approx Wire Size | Color |
|---|---|---|---|---|---|
| WF-P1 | 14.9 | 8.6 | 6.5 | 2 0.5~1.5 square | Grzy |
| WF-P2 | 17.8 | 10 | 7.5 | 3 0.5~1.5 square | Blue |
| WF-P3 | 21.9 | 12.5 | 10 | 2 2.5 square | Orange |
| WF-P4 | 24.6 | 14 | 11.2 | 3 2.5 square | Yellow |
| WF-P5 | 26.4 | 15.3 | 13 | 4 2.5 square | Red |
