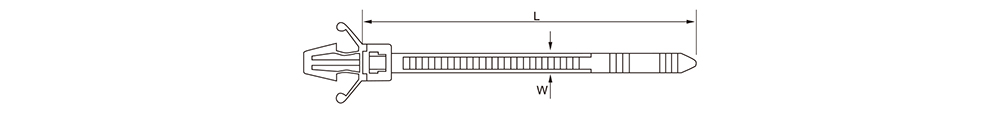

| ITEM.NO. | L | W (mm) |
Bundle diameter E(mm) |
Min.loop tensile strength |
(φ) HOLE DIA |
Panel thickness | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| INCH | MM | LBS | KGS | INCH | MM | INCH | MM | |||
| WF-100PT | 4" | 100 | 2.5 | 22 | 18 | 8.0 | 0.189 | 4.8 | 0.094 | 2.4 |
| WF-120PT | 4 3/4" | 120 | 2.5 | 30 | 18 | 8.0 | 0.189 | 4.8 | 0.094 | 2.4 |
| WF-120PPT | 4 3/4" | 120 | 4.8 | 25 | 50 | 22.0 | 0.252 | 6.4 | 0.126 | 3.2 |
| WF-160PT | 6 1/4" | 160 | 4.8 | 38 | 50 | 22.0 | 0.252 | 6.4 | 0.126 | 3.2 |
| WF-190PT | 7 1/2" | 190 | 4.8 | 45 | 50 | 22.0 | 0.252 | 6.4 | 0.126 | 3.2 |
